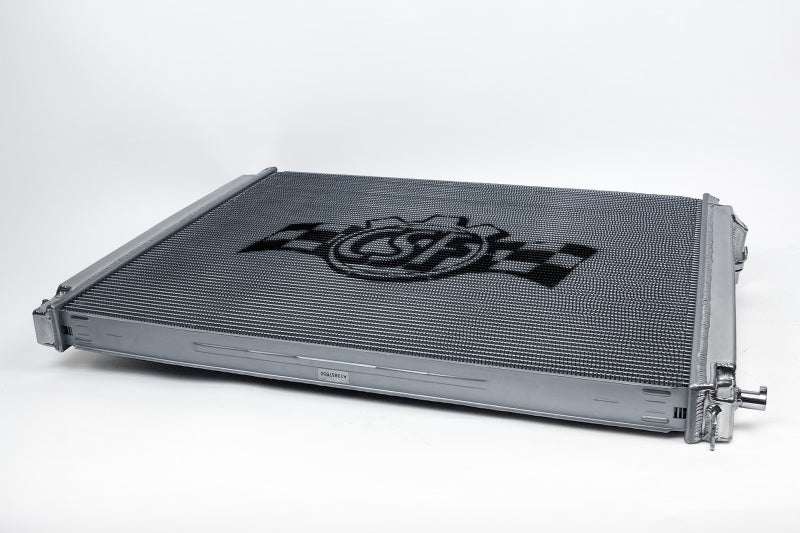

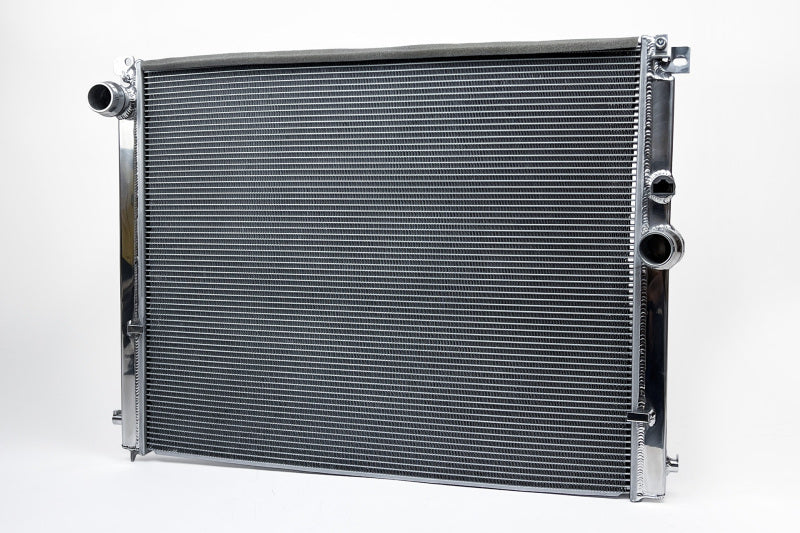

CSF 2020+ Toyota A90/A91 GR Supra / 2019+ BMW Z4 (2.0/3.0L) / 19-21 BMW G2X All-Aluminum Radiator

With data collected by development partners and race teams, CSF was able to design the ideal High-Performance replacement. The CSF radiator features the latest 5mm fin technology. These fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow. The core is much larger than the factory featuring 2-Row 42mm aluminum core. This both increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting.

• New "Track-Spec" 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact and Heat Dissipation
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

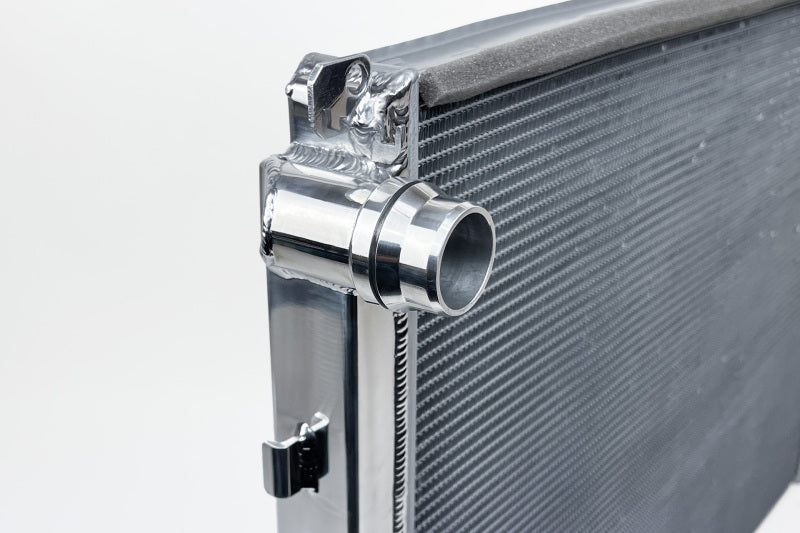

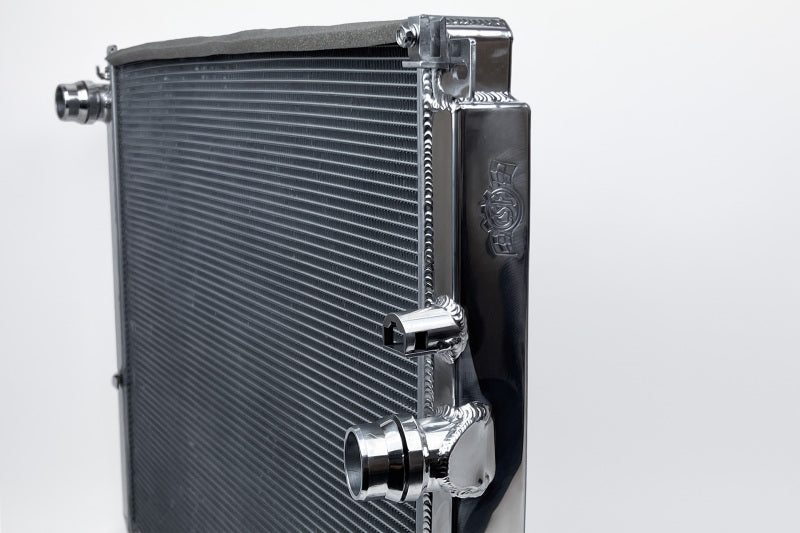

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 100% All Aluminum TIG-Welded Construction
• 2-Row, 42mm Ultra-High-Performance Core
• Individually Leak and Pressure Tested
• 1-Hour "Mirror Finish" Hand Polish
• 2-Year Limited Warranty

This Part Fits:
