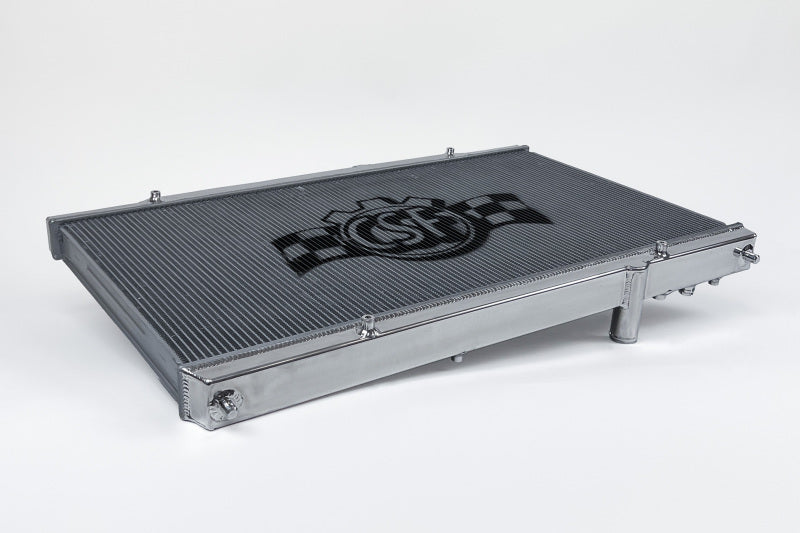

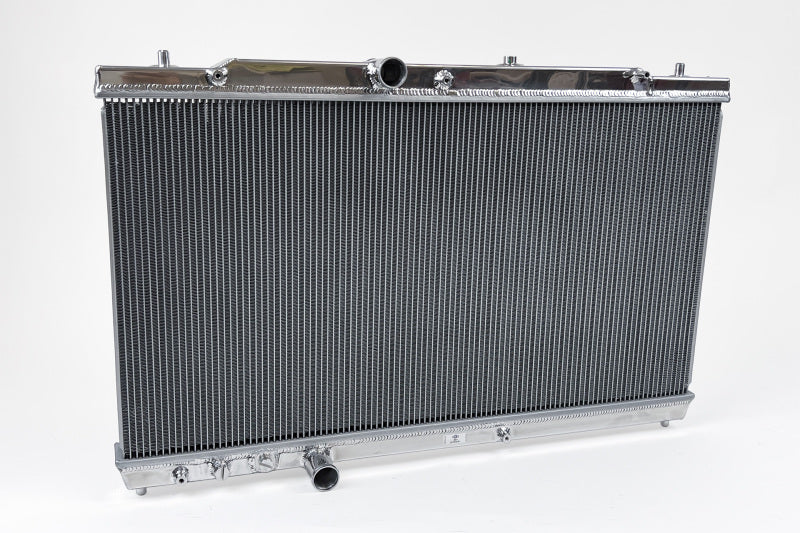

CSF 2023+ Honda Civic FL5 Type R / 2024+ Acura Integra DE5 Type S All-Aluminum Radiator
CSF7221
Cena regularna
$1,382.99 AUD
15 in stock — ready to ship

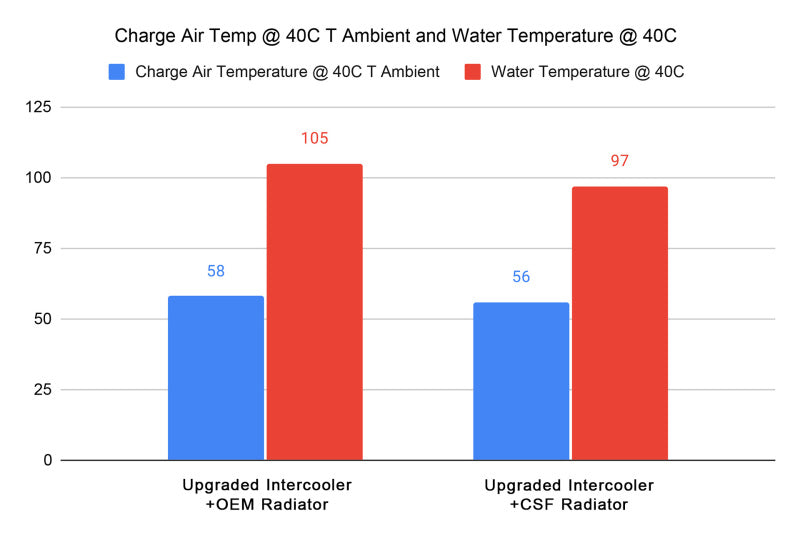

Just like the HPD Race Radiator, the CSF FL5 Civic Type R / DE5 Integra Type S Radiator features the latest 5mm fin technology. The smaller fins significantly increase the heat exchange surface area improving overall cooling efficiency. A larger 2-Row 42mm aluminum core increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. Overall, testing has revealed that the CSF radiator decreases engine coolant temperatures by 6-8% compared to the factory radiator. The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting.
- New "Track-Spec" 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact and Heat Dissipation
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- Cooling Tubes with CSF's Exclusive B-Tube Technology

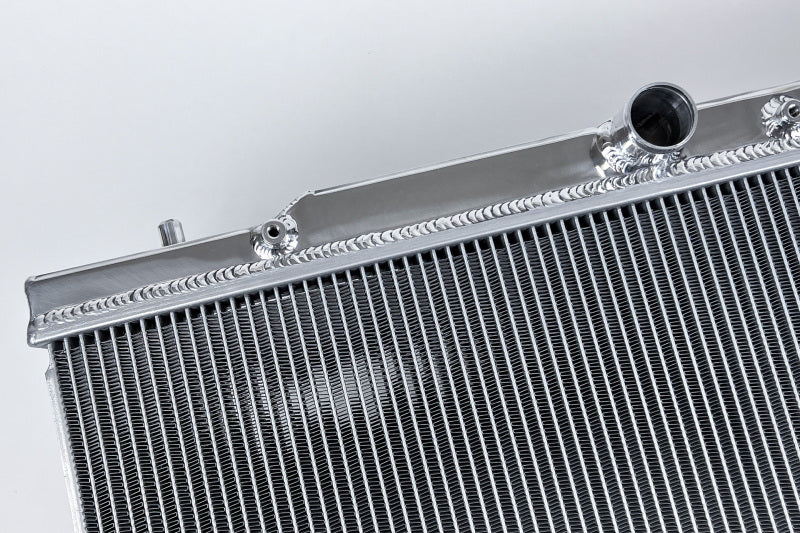

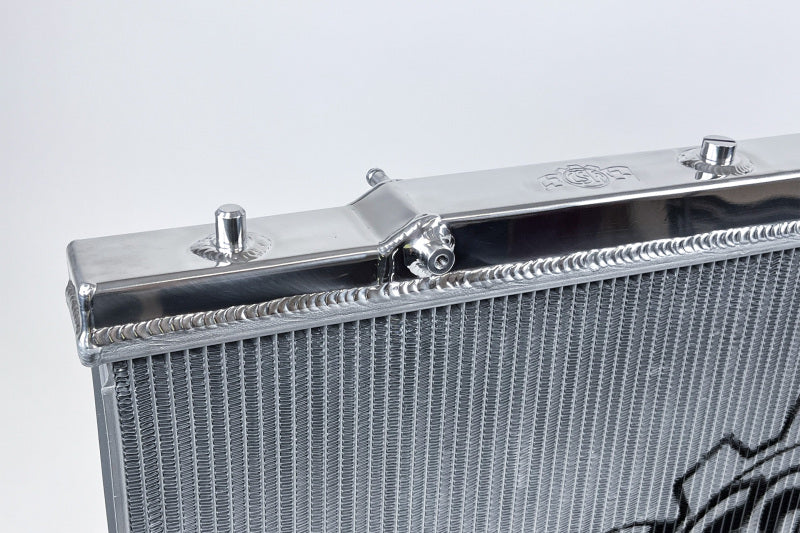

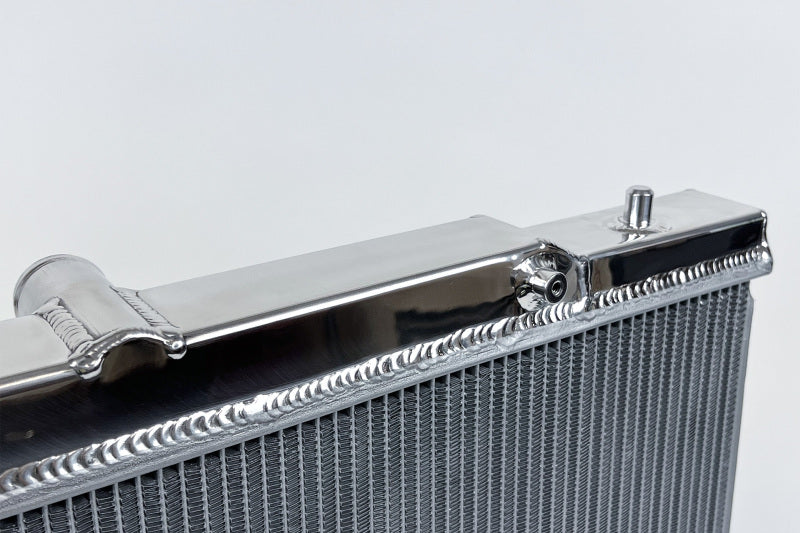

- 100% All Aluminum TIG-Welded Construction
- 2-Row, 42mm Ultra-High-Performance Core
- Individually Leak and Pressure Tested
- 1-Hour "Mirror Finish" Hand Polish
- 2-Year Limited Warranty
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2024-2026 | Acura | Integra | Type S |
| 2023-2026 | Honda | Civic | Type R |
