Dinan 12-16 BMW 2/3/4-Series (F22/F30/F31/F32/F36) High Performance Air-to-Air Dual Core Intercooler
DNND330-0021
Cena regularna
$1,879.99 AUD
Out of stock

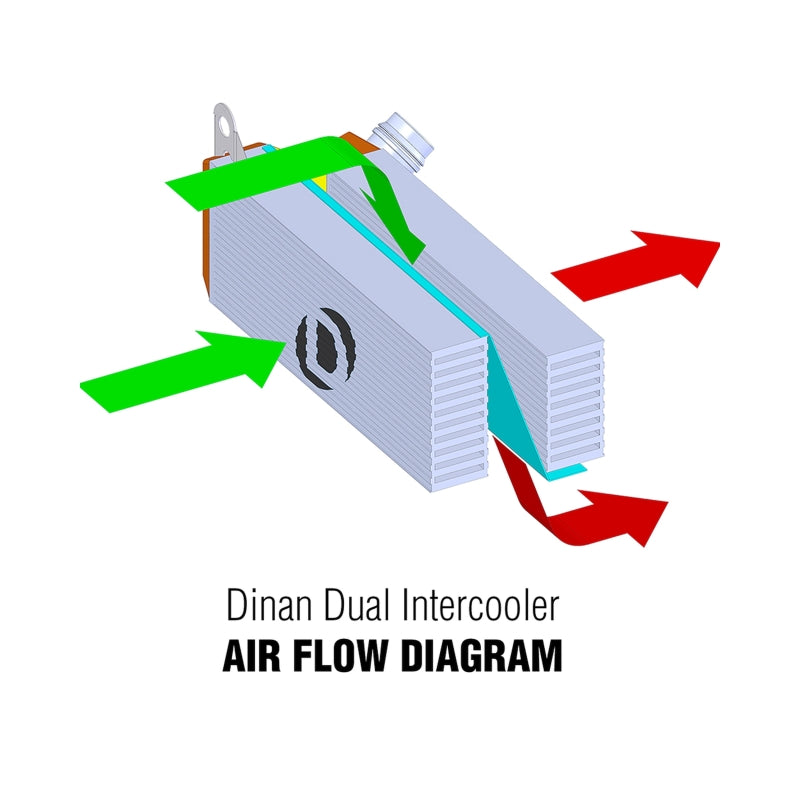

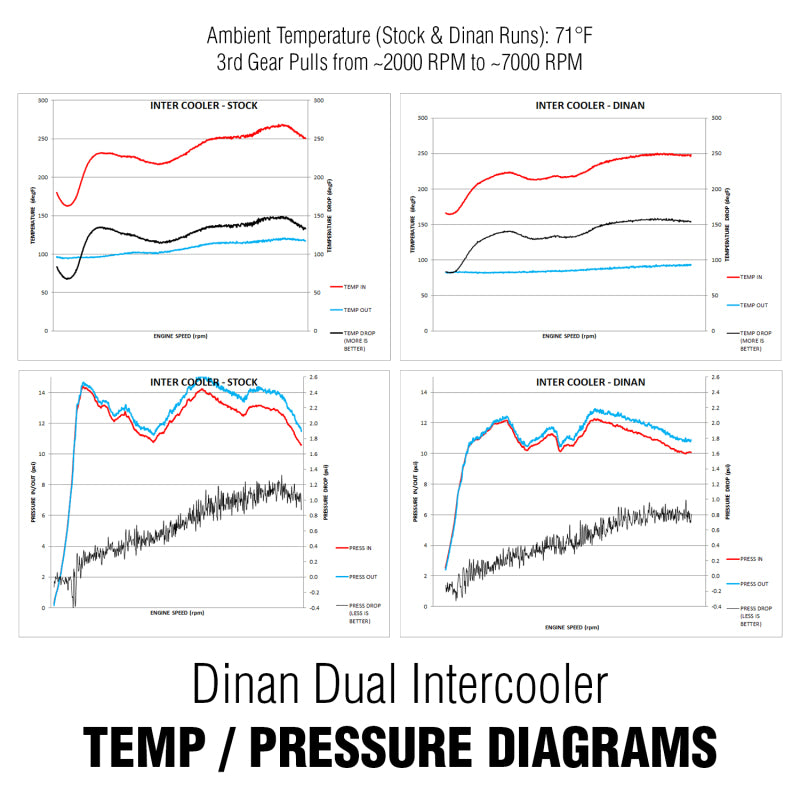

Greater power gains are achieved with a larger high-performance intercooler. The Dinan dual core intercooler provides a 240% increase in face area along with an equally impressive increase in volume, substantially reducing the pressure drop to 0.8 psi, as well as providing for more efficient heat exchange and more consistent output power. Dinan's unique dual-core design allows 2 separate cores to be working in conjunction with one another at all times. This doubling of resources is directly responsible for a 60% improvement in the delta from charge air temperature to ambient temperature (see diagrams). "Cool down" time is also reduced, enabling the cars to produce full power under varying driving conditions such as stop and go traffic. This leaves the chances of being susceptible to heat soak nearly a thing of the past.
- Face area 240% larger than the stock intercooler setup for maximum cooling efficiency to deter heat soak.
- Charge Air Temperature / Ambient Temperature Delta: 18º F @ 6250 RPM (60% improvement over stock).
- Max gains (N20/N26 engine) of 6 HP and 5 lb-ft of torque @ 5500 RPM.
- Charge Air Temperature drop: 155º F (11% improvement over stock).
- Max gains (N55 engine) of 15 HP and 13 lb-ft of torque @ 6250 RPM.
- Charge Air Pressure drop: 0.80 PSI (25% improvement over stock).
- 50 State Emissions Legal: CARB EO D-176-51
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2016 | BMW | 228i | Base |
| 2015-2016 | BMW | 228i xDrive | Base |
| 2012-2016 | BMW | 328i | Base |
| 2014-2016 | BMW | 328i GT xDrive | Base |
| 2013-2016 | BMW | 328i xDrive | Base |
| 2012-2015 | BMW | 335i | Base |
| 2014-2016 | BMW | 335i GT xDrive | Base |
| 2013-2015 | BMW | 335i xDrive | Base |
| 2014-2016 | BMW | 428i | Base |
| 2015-2016 | BMW | 428i Gran Coupe | Base |
| 2014-2016 | BMW | 428i xDrive | Base |
| 2015-2016 | BMW | 428i xDrive Gran Coupe | Base |
| 2014-2016 | BMW | 435i | Base |
| 2015-2016 | BMW | 435i Gran Coupe | Base |
| 2014-2016 | BMW | 435i xDrive | Base |
| 2015-2016 | BMW | 435i xDrive Gran Coupe | Base |
| 2014-2016 | BMW | M235i | Base |
| 2015-2016 | BMW | M235i xDrive | Base |
