APR 17-24 Audi RS3/18-22 Audi TT RS Quattro 980cc Multiport Injection (MPI) Injector Kit
APRMS100195
Regular price
$206.99 AUD
Special Order — Average 2-3 month wait time. If stock indicated, usual dispatch time applies.

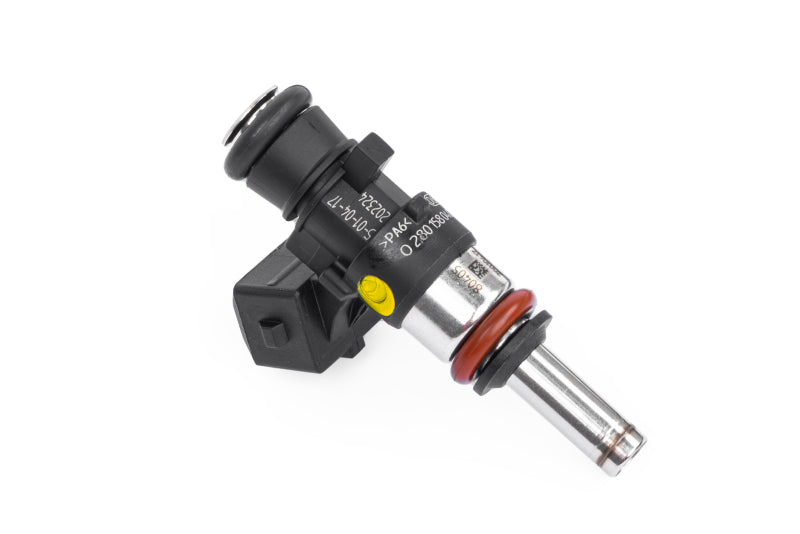

High horsepower configurations often require more fuel, especially on applications where ethanol is used. The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds. The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar. A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.
- 30° single cone spray angle with 0° bent angle and 0° gamma angle
- Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3, where supported
- Supports up to 8 bar of use in motorsport configurations
- 980cc/min, 670g/min, or 89lb/hr @ 3 bar (n-heptane)
- 150 mm long harness with braided wire sheathing
- Bosch EV 14 CKxT MPI injector (0280 158 040)
- APR Bosch Jetronic to OEM 2 pin harness
- ECU software required for use

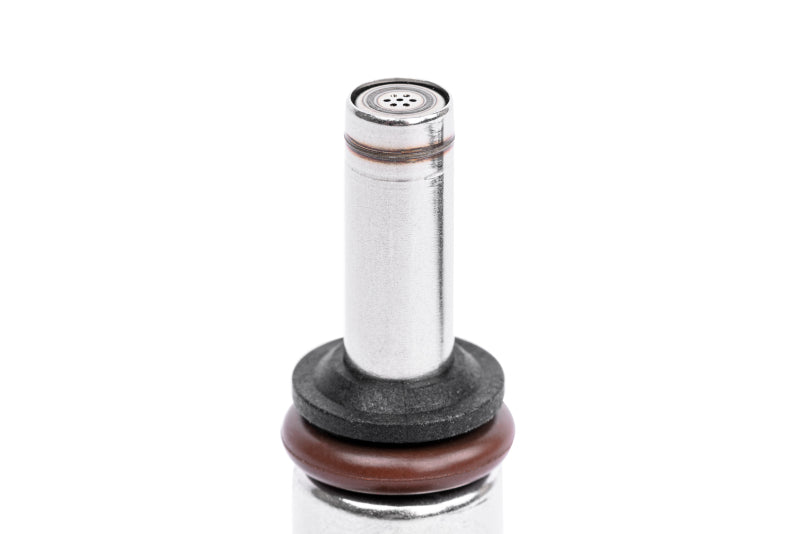

- 24mm extended tip nozzle
- E85 and M100 compatible
- 12 ohm coil resistance
- 33.6mm compact body
- Top-feed injector
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017-2020,2022-2026 | Audi | RS3 | Base |
| 2018-2022 | Audi | TT RS Quattro | Base |
| 2022 | Audi | TT RS Quattro | Heritage Edition |
APR 17-24 Audi RS3/18-22 Audi TT RS Quattro 980cc Multiport Injection (MPI) Injector Kit
APRMS100195
Regular price
$206.99 AUD
High horsepower configurations often require more fuel, especially on applications where ethanol is used. The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds. The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar. A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.
- 30° single cone spray angle with 0° bent angle and 0° gamma angle
- Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3, where supported
- Supports up to 8 bar of use in motorsport configurations
- 980cc/min, 670g/min, or 89lb/hr @ 3 bar (n-heptane)
- 150 mm long harness with braided wire sheathing
- Bosch EV 14 CKxT MPI injector (0280 158 040)
- APR Bosch Jetronic to OEM 2 pin harness
- ECU software required for use
- 24mm extended tip nozzle
- E85 and M100 compatible
- 12 ohm coil resistance
- 33.6mm compact body
- Top-feed injector
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017-2020,2022-2026 | Audi | RS3 | Base |
| 2018-2022 | Audi | TT RS Quattro | Base |
| 2022 | Audi | TT RS Quattro | Heritage Edition |
